Escáner 3D Einstar

EINSTAR Handheld Scanner Features

Scanning Mode: Structured Light Scanning
Point Distance: 0.1 mm ~ 3 mm
Light Source: Infrared VCSEL Structured Light
Working Distance: Effective Working Distance: 160 mm - 1400 mm; Optimal Working Distance: 400 mm
Depth of Field: 160-1400 mm
Maximum FOV: 434 mm * 379 mm (under optimal work distance)
Scan Speed: 980,000 points/s, up to 14 FPS
Align Modes: Feature Alignment, Hybrid Alignment, Texture Alignment, Global Markers
Safety: Eye-safe
Texture Scan: Yes
Outdoor Scanning: Yes
Interface: USB 2.0 or above
Output Formats: OBJ; STL; PLY; P3; 3MF
Scanner Size: 220 mm * 46 mm * 55 mm
Carrying Case Size: 245 mm * 245 mm * 90 mm
Scanner Body Weight: 500 g
Operating Temperature Range: 0-40°C
Operating Humidity Range: 10-90%
Certifications: CE, FCC, ROHS, WEEE, KC
Recommended Configuration: OS: Win10/11, 64 bit; Graphics card: NVIDIA GTX1060; Video memory: ≥6GB; Processor: I7-11800H; Memory: ≥32 Basic Computer Configuration: OS: Win10, 64 bit; Graphics card: NVIDIA GTX1050; Video memory: ≥4GB; Processor: I7-7700H; Memory: ≥16GB

USES AND APPLICATIONS OF THE PROFESSIONAL HANDHELD 3D SCANNER:

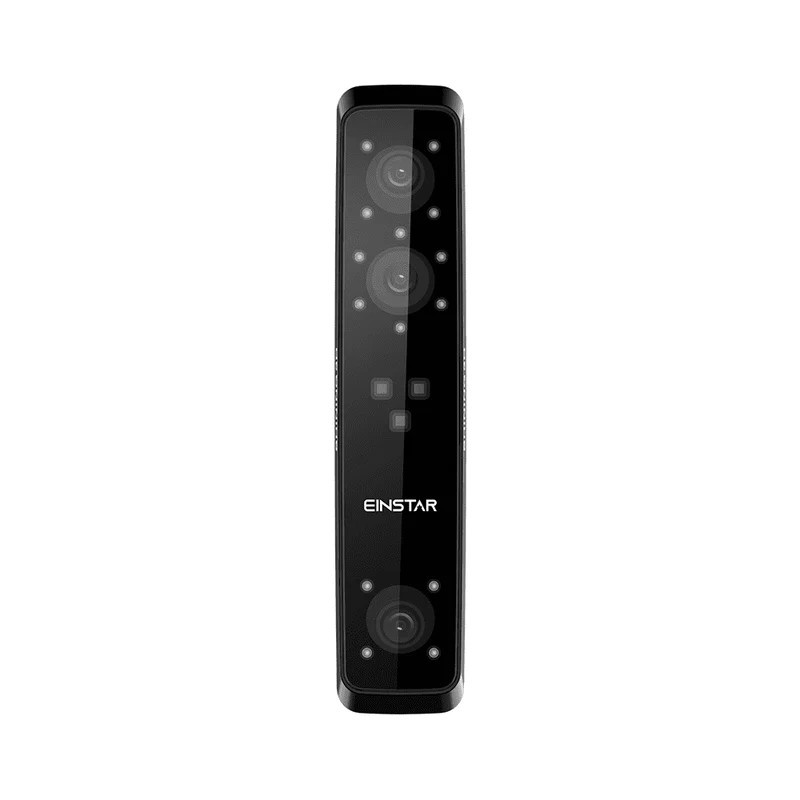

EINSTAR Professional Handheld 3D Scanner

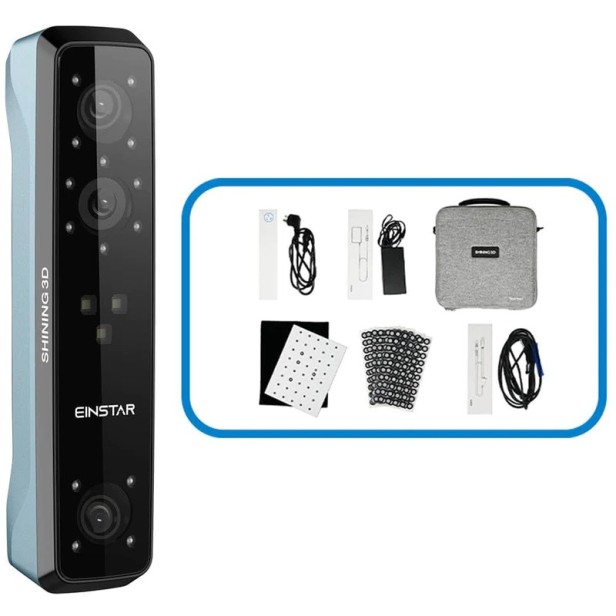

EINSTAR, an affordable handheld 3D scanner, makes high-quality 3D data available to everyone. In the standard package, you will find a handheld 3D scanner with Exstar software, and a lightweight carrying case that includes a series of accessories: a silicone case, introductory user guide, positioning markers, cloth to wipe the lens, a carrying strap, power supply, and USB cable.

Variety Applications

Support multiple data format outputs, compatible with 3D printers and 3D design software.

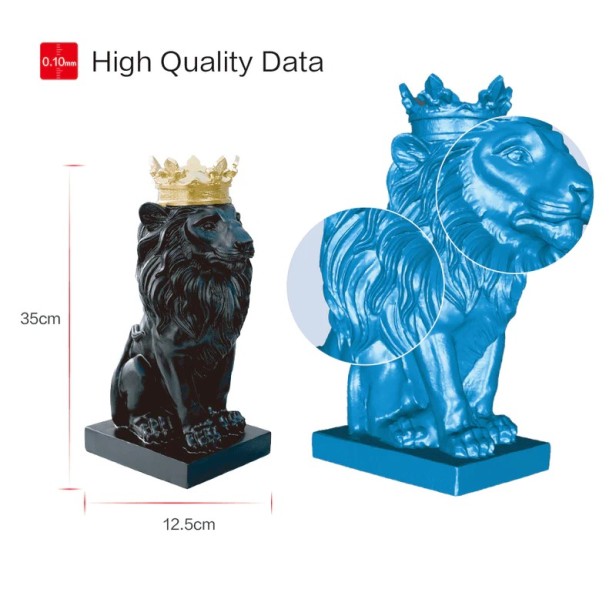

High-Quality Data

Collect high-density point cloud data fast and easily with a point distance up to 0.1 mm.

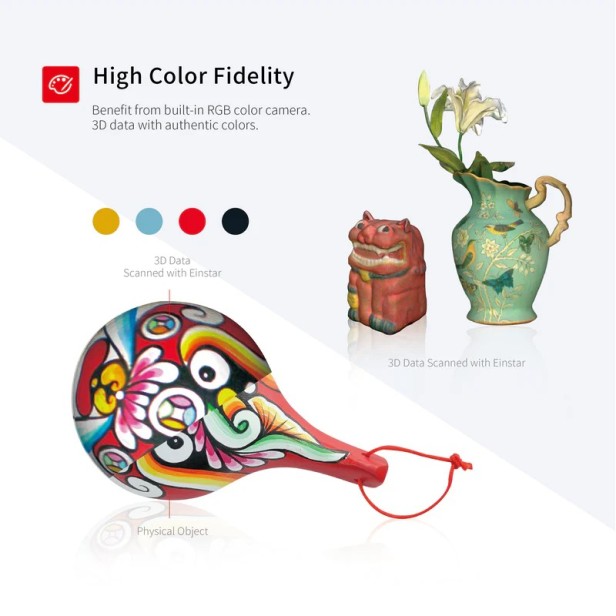

High Color Fidelity

Benefit from the built-in RGB color camera. 3D data with authentic colors.

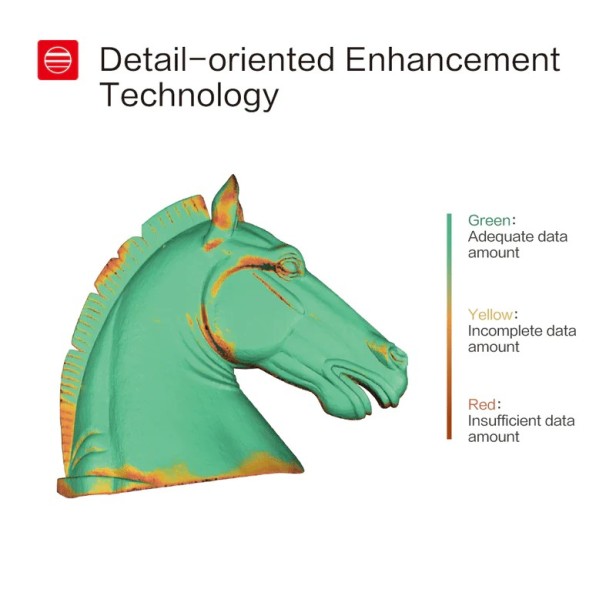

Detail-oriented Enhancement Technology

Built-in detail enhancement technology optimizes the point cloud for complete data acquisition.

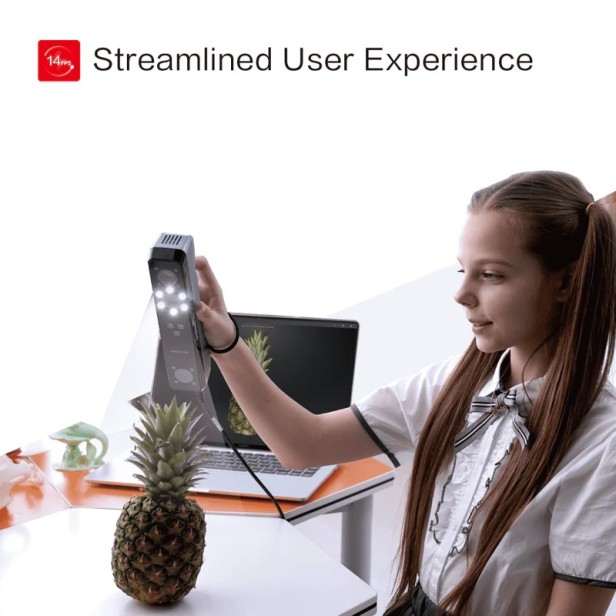

Streamlined User Experience

Smooth and fast, scanning speed up to 14 FPS.

• Smart tracking performance
• Automatic alignment
• Intelligent algorithm

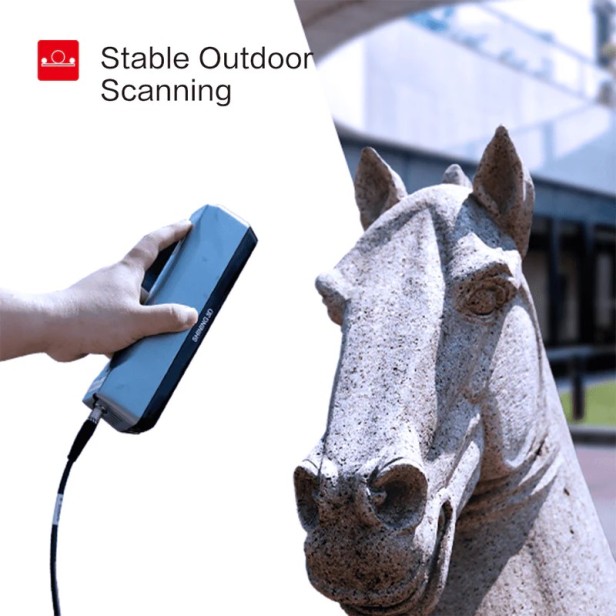

Stable Outdoor Scanning

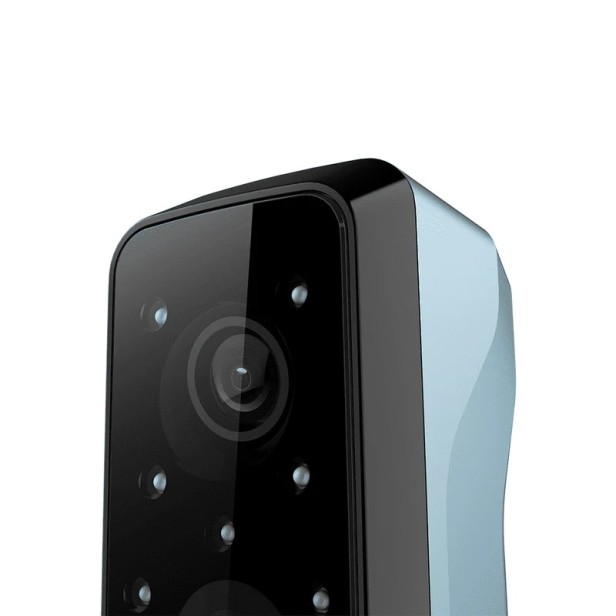

Equipped with 3 Infrared VCSEL Projectors, 2 Stereo Depth Cameras, and 1 RGB Camera, Einstar can capture clear scan data and generate stable outputs outdoors. Provide a flexible working distance for small and large objects.
