FLEXIBLE CARIBBEAN 1,75mm 330g

SMARTFIL FLEXIBLE TPU FILAMENT LIME GREEN – 93A

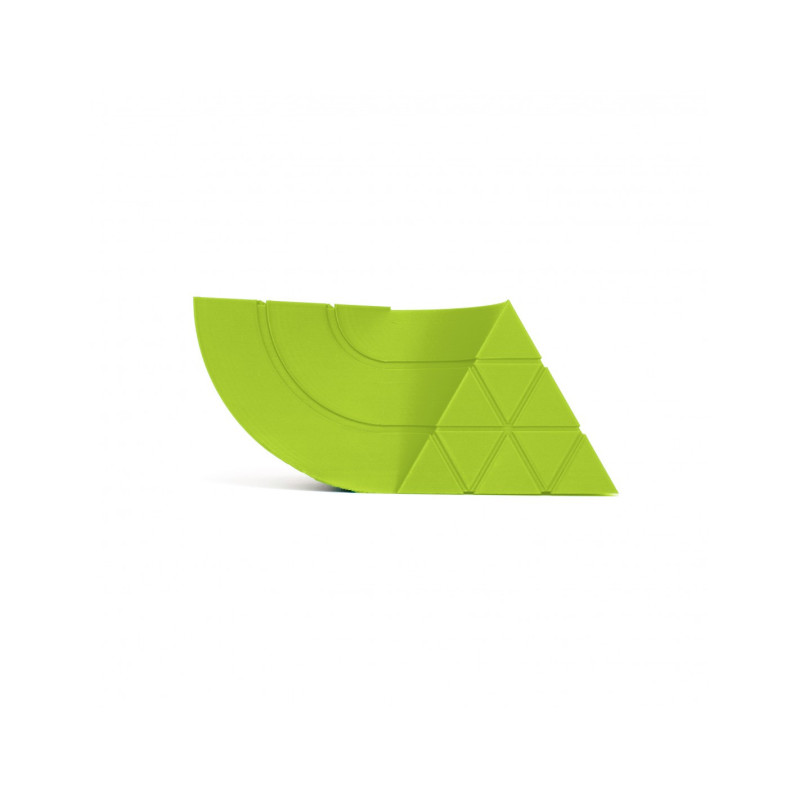

Smartfil TPU Flexible 93A in vibrant Lime Green (Caribbean) is the ideal filament for printing soft, durable and impact-resistant 3D parts. Developed by Smart Materials 3D, this filament is made from high-quality polyurethane (TPU) with a Shore A hardness of 93, making it compatible with nearly all FDM 3D printers — including those with direct and some Bowden extruders.

With exceptional flexibility and mechanical properties, it's perfect for printing footwear soles, RC bumpers, car parts, and ergonomic grips. It’s also highly resistant to hydrolysis and oxidation, ensuring excellent long-term performance.

TECHNICAL SPECIFICATIONS

• Material type: Thermoplastic Polyurethane (TPU)
• Flexibility: High (Shore A 93)
• Color: Lime Green (Caribbean)
• Diameter: 1.75 mm / 2.85 mm
• Density: 1.21 g/cm³ (ISO 1183)
• Printing temperature: 210 – 235 ºC (recommended: 225 ºC)
• Bed temperature: 0 – 100 ºC
• Print speed: 35 mm/s
• Fan: 100%
• Layer height: 0.2 mm or greater
• Nozzle recommendation: ≥ 0.2 mm

MECHANICAL PROPERTIES

• Shore Hardness: 93A (ISO 868)
• Abrasion resistance: 35 mm³ (ISO 4649)
• Tear resistance: 180 N/mm (ISO 34-1 B/b)
• Tensile strength: 40 MPa (ISO 37)
• Elongation at break: 500% (ISO 37)
• 100% modulus: 9.5 MPa
• 300% modulus: 19.5 MPa
• Max temperature resistance: 105 ºC

USE CASES

This flexible filament is ideal for:

• Shoe soles and insoles
• Automotive rubber parts
• RC vehicle bumpers and components
• Soft ergonomic grips

IMPORTANT PRINTING TIPS

1. Maintain consistent material flow: Adjust your slicer settings gradually to prevent under-extrusion or clogging. Use adhesive spray for bed adhesion.
2. Optimize printing temperature: Start at 225 °C and fine-tune according to your printer’s behavior. Higher temperatures help flow, but excessive heat may cause surface artifacts.
3. Slow down your print: TPU requires slow, controlled extrusion. 35 mm/s is a reliable speed for quality prints.
4. Disable retraction on Bowden-style printers if possible, as flexible filaments tend to jam in retraction cycles.

PRODUCT DETAILS

• Net weight: 330g / 750g
• Gross weight: 456g / 975g
• Brand: Smartfil
• Manufacturer: Smart Materials 3D
• Country of Origin: Spain
• Packaging: Vacuum-sealed with desiccant in original SmartBag

WHY TPU?

TPU (Thermoplastic Polyurethane) is ideal for shock absorption, flexibility, and chemical resistance. Compared to TPE, it’s easier to print, stronger, and more stable in temperature-sensitive environments. Shore A values help determine flexibility: 93A is ideal for general-purpose flexible prints, balancing printability and elasticity.

STORAGE TIPS

TPU absorbs moisture easily. Store it in a dry, sealed container or use filament dryers for consistent performance and extrusion quality.
