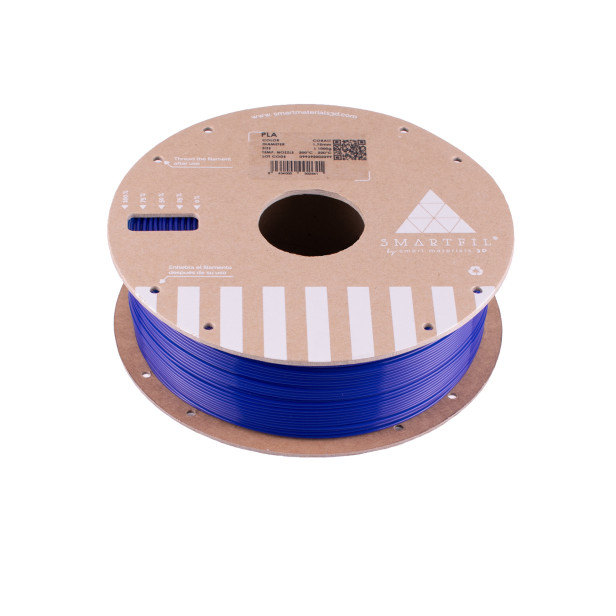

SMARTFIL PLA 1.75 COBALT 1KG

SMARTFIL DARK BLUE PLA FILAMENT FEATURES (COBALT - RAL 5022):

• Material Type: PLA (Polylactic Acid)
• Technical Name: Polylactic Acid
• Filament Diameter: 1.75 mm / 2.85 mm
• Diameter Tolerance: ±0.03 mm
• Color: Dark Blue (Cobalt - RAL 5022)
• Density: 1.24 g/cm³ (ASTM D792)
• Recyclable: Yes
• Food Contact Safe: Yes
• Biocompostable: Yes
• Available Weight: 750 g / 1 kg
• Brand: Smartfil
• Manufacturer: Smart Materials 3D
• Origin: Spain

MECHANICAL PROPERTIES

(1) Values obtained from printed test samples using 0.4 mm nozzle, 100% rectilinear infill, and 0.2 mm layer height.

THERMAL PROPERTIES

• Glass Transition Temperature (Tg): 60 ºC (ISO 11357)
• VICAT B (50 N / 50 ºC/h): 59 ºC (ISO 306)
• HDT B (0.45 MPa): 60 ºC (ISO 75)

3D PRINTING PARAMETERS

• Printing Temperature: 205 – 220 ºC
• Heated Bed Temperature: 40 – 60 ºC
• Cooling Fan: 100%
• Material Flow: 100%
• Recommended Layer Height: ≥ 0.1 mm
• Recommended Nozzle: ≥ 0.2 mm
• Print Speed: 30 – 50 mm/s

RECOMMENDED USES FOR SMARTFIL PLA COBALT

• Functional and visual prototyping
• Architectural scale models
• Large decorative parts
• Educational 3D printing projects

MANUFACTURER RECOMMENDATIONS

• Store in a dry place, away from direct sunlight
• Storage temperature: 10 ºC – 40 ºC

POST-PROCESSING & FINISHING

• Sanding followed by acrylic painting
• Coating with Poxyglass 3D
• Transparent spray varnish for glossy finish

3D PRINTER MAINTENANCE TIPS

After completing your 3D print, avoid removing the filament immediately if the printer will be idle for some time.

Why shouldn't you remove the filament right after printing?

A small amount of material always remains in the hotend and nozzle. If removed cold, it may solidify and create a clog. When the printer is used again, this could cause extrusion issues.

How to avoid clogs?

Before loading a new filament, reheat the nozzle to 210 °C (for PLA), push slightly to expel the leftover plug, and then insert the new filament. This helps prevent color mixing and clogging, especially if switching from highly pigmented filaments.

Note: If the new filament requires a lower temperature, initially use the higher temperature of the previous material to clean out residuals. Then lower the temp as needed.

For optimal maintenance, use cleaning filament regularly to keep your hotend in perfect shape.
