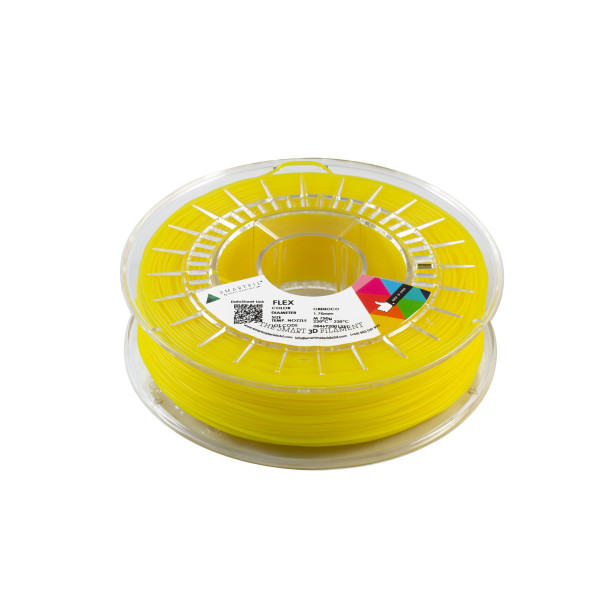

FLEXIBLE ORINOCO 1,75mm 750-330gr

FEATURES OF YELLOW FLEXIBLE TPU FILAMENT SPOOL:

• Material type: Thermoplastic Polyurethane (TPU)
• Material characteristic: Flexible
• Filament color: Yellow - Orinoco
• Filament diameter: 1.75 mm / 2.85 mm
• Density: 1.21 g/cm³ (ISO 1183)
• Printing parameters:
  • Printing temperature: 220 – 230 °C (recommended: 225 °C)
  • Bed temperature: 0 – 60 °C
  • Cooling fan: 60 – 80 %
  • Print speed: 20 – 30 mm/s
  • Layer height: ≥ 0.1 mm
  • Nozzle size: ≥ 0.2 mm
• Mechanical properties (ISO):
  • Tensile strength: 12.7 MPa
  • Tensile modulus: 2.7 MPa
  • Flexural strength: 33.6 MPa
  • Flexural modulus: 50.4 MPa
  • Elongation at max stress: 295.5 %
  • Elongation at break (tensile): 301.4 %
  • Elongation at break (flexural): 15.4 %
  • Charpy impact (unnotched): 75.3 kJ/m²
  • Hardness: 93 Shore A
• Thermal properties:
  • Vicat B (50 N 50 °C/h): 56 °C
• Available formats: 330 g / 750 g
• Gross weight: 456 g / 975 g
• Brand: Smartfil
• Manufacturer: Smart Materials 3D
• Made in: Spain

APPLICATIONS OF YELLOW FLEXIBLE TPU FILAMENT:

• Shoe components
• Automotive parts
• RC parts
• Grips and handles

Smartfil Flexible is a polyurethane-based filament with high resistance to hydrolysis and oxidation. With a Shore A hardness of 93, it is compatible with most 3D printers on the market. On Bowden extrusion systems, ensure the extruder is capable of handling flexible materials efficiently.

MANUFACTURER'S USAGE RECOMMENDATIONS:

This filament is hygroscopic. Store in a sealed container in a cool, dry place.

1. Ensure continuous flow: Tune your slicer settings for consistent extrusion.
2. Optimal temperature: Print at 225 ºC (range: 220 – 230 ºC).
3. Low print speed: 20 – 30 mm/s recommended.
4. Layer height: ≥ 0.2 mm
5. Disable retraction: if clogs appear in Bowden setups.

(1) Data based on printed samples with 0.4 mm nozzle, 100% rectilinear infill, 0.2 mm layer height.
